ACG Chain Hoist Systems
ACG Chain Hoist
Compact, Reliable and Cost-Effective Load Handling
ACG chain hoists are designed for applications that require compact dimensions, easy installation and reliable lifting performance. They are suitable for jib cranes, monorail systems, light overhead cranes and industrial workstations.

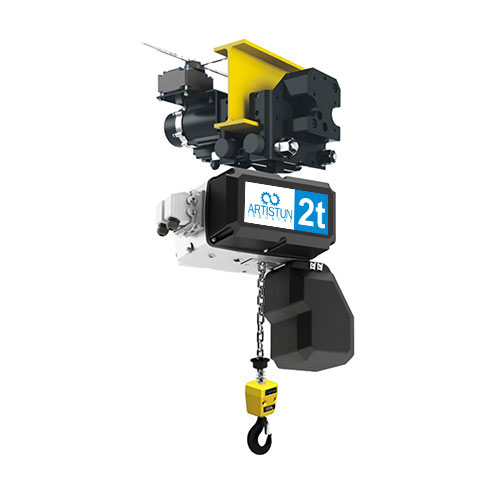

PRODUCT RENDER
ACG
Chain Hoist
Compact design, easy installation, low maintenance and reliable operation For a wide range of industrial applications.
250kg - 20Ton
FEM / ISO
Remote Ready
Technical & Operational Advantages
Why Choose ACG Chain Hoists?
Chain hoists are widely used across industries due to their compact size, low weight, easy maintenance and reliable lifting performance.
Low Weight
Lower dead load on the structure and suitable for light cranes and monorails.Easy Installation
Can be installed on beams, monorails, jib cranes and workstation systems.Simple Maintenance
Simpler structure, better access and lower maintenance cost.Suitable for Low Headroom
A practical choice for applications with limited overhead space.Smooth & Precise Operation
Controlled motion for assembly, precise handling and sensitive loads.Suitable for Workstations
A practical option for assembly lines, workshops and light production areas.
Production Range
ACG Manufacturing Specifications
ACG chain hoist specifications can be customized based on capacity, lifting height, installation type and project operating conditions.
Capacity
250 kg to 20 tons
Lifting Height
Customizable
Chain Type
G80 / G100
Duty Class
FEM 1Am to FEM 3m
Control Type
Pendant or remote control
Power Supply
380V / 50Hz
Speed
Single-speed or inverter control
3D Exploded View
Main Hoist Components
ACG chain hoists consist of mechanical, electrical and control components working together to provide safe and reliable lifting performance.
Hoisting Motor
Gearbox
Load Chain
Chain Bag
Hook
Hoisting Motor
Gearbox
Load Chain
Hook
Chain Bag
Brake
Control Panel
Control System
Limit Switch

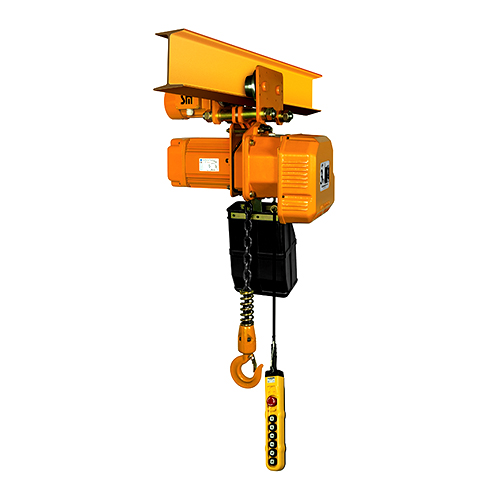

ACG RENDER GALLERY
Chain Hoist Engineering Render Gallery
Industrial renders showing the hoist body, mechanical components, hook assembly and engineered product structure.
ACG PRODUCT GALLERY
Product & Project Gallery
Real images of components, assembly, technical details and delivered ACG chain hoist examples.
Design & Installation Types
ACG Chain Hoist Types
ACG chain hoists can be supplied in different configurations based on installation type, travel path, operator requirements and project working conditions.
Fixed Chain Hoist
For fixed installation in workstations, defined lifting points and limited production areas.
FIXED CHAIN HOIST
Monorail Chain Hoist
For movement along monorail beams and linear handling routes.
MONORAIL HOIST
Chain Hoist with Manual Trolley
For manual load travel with a simple, economical structure for light to medium-duty applications.
MANUAL TROLLEY
Chain Hoist with Electric Trolley
For motorized load travel in industrial paths, production lines and frequent-use applications.
ELECTRIC TROLLEY
Customizable Options
Custom Equipment for Chain Hoists
ACG chain hoists can be equipped with various optional equipment and control systems based on application type, installation space, control level and operating conditions.
JUUKO Remote Control
Safe and precise operator control for load handling in limited or high-traffic work areas.
Speed Control Inverter
Smoother motion, better speed control and reduced shock during start and stop.
Swivel Hook
Controlled load rotation for assembly, precise handling and special applications.
Double Hook Configuration
Suitable for special loads, long parts or applications requiring better force distribution.
Electric Trolley
Motorized hoist travel on monorail beams or runway paths for frequent operation.
Corrosion-Resistant Chain
Suitable for humid environments, food, pharmaceutical or higher-corrosion applications.
Industrial Applications
Target Industries
ACG chain hoists are designed for applications that require precision, speed and limited installation space.
Automotive Industry
AUTOMOTIVEFood Industry
FOOD INDUSTRYPharmaceutical Industry
PHARMACEUTICALAssembly Lines
ASSEMBLY LINESWarehouses
WAREHOUSEManufacturing Workshops
WORKSHOPSPackaging Industry
PACKAGINGElectronics Industry
ELECTRONICS
Standards & Testing
Quality & Standards
All ACG chain hoists are designed, manufactured and tested according to international industrial standards.
Design & Manufacturing Standards
FEMDuty class and mechanism classification
DINIndustrial design and manufacturing requirements
ISOQuality and technical conformity frameworks
EN 14492Standard for lifting equipment and winches
IECElectrical and control equipment requirements
Quality Control Stages
Chain Inspection
Hook Inspection
Brake Performance Test
Load Testing
Electrical System Inspection
Manufacturing & Delivery Workflow
ACG Production Process
ACG chain hoist production is carried out through a controlled workflow from design and component selection to assembly, load testing and final delivery.
01
Design
DESIGN02
Component Selection
EQUIPMENT SELECTION03
Assembly
ASSEMBLY04
Quality Control
QUALITY CONTROL05
Load Testing
LOAD TEST06
Final Delivery
DELIVERY
Frequently Asked Questions
FAQ
Up to 20 tons, with higher capacities available as custom solutions.
Yes. Chain hoists can be supplied for monorail operation and can be equipped with inverter control for smoother motion.
Yes. Electric trolley configuration and lifting height can be customized according to project conditions.
Yes. Radio remote control and spare parts supply are available for service and maintenance.
Yes. After technical inspection of the existing crane, installation or replacement of the hoist is possible.
Beyond Movement. Compact Lifting Power.
