ACG Wire Rope Hoist
ACG Wire Rope Hoist
The Lifting Core of Industrial Crane Systems
ACG Wire Rope Hoists are engineered for overhead cranes, gantry cranes, semi-gantry cranes, monorail systems and customized industrial lifting applications, delivering reliable performance, safety and long service life.

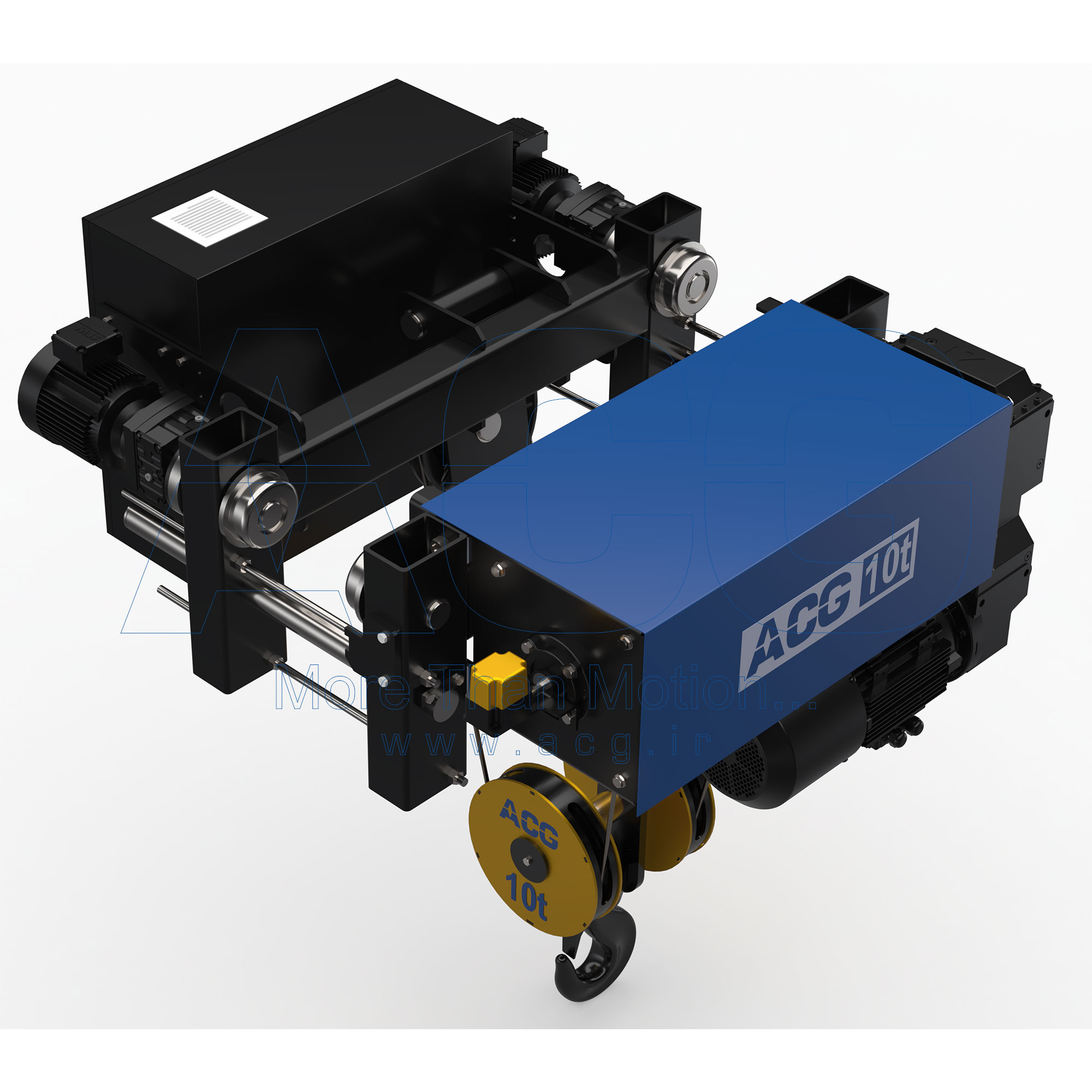

Product Render
ACG
Wire Rope Hoist
Custom-engineered wire rope hoists with lifting capacities from 1 to 100 tons for overhead cranes, gantry cranes and industrial lifting systems.
1 - 100 Ton
FEM / ISO
Custom Lift
Technical & Operational Advantages
Why Choose ACG Wire Rope Hoists?
The hoist is the core lifting unit of every industrial crane. Reliable operation, high safety and optimized maintenance cost are essential features of a professional hoisting system.
Suitable for Continuous Operation
Suitable for production lines, active workshops and frequent-duty lifting cycles.Customizable Engineering
Configurable based on capacity, lifting height, speed, duty class and project requirements.Standardized Components
Built with serviceable industrial components suitable for long-term maintenance and parts availability.Easy Spare Parts Access
Reduced downtime through easier access to consumable parts and required spare components.Easy Maintenance
Accessible structure for inspection, periodic service and reduced maintenance costs.Compatible with Multiple Crane Types
Suitable for overhead cranes, gantry cranes, semi-gantry cranes, monorail cranes and industrial lifting systems.
Production Range
Technical Specifications
All specifications can be engineered and customized according to project requirements and operating conditions.
Capacity
1 – 100 Tons
Lifting Height
Customized
Reeving Ratio
2/1 – 12/1
Lifting Speed
Customized
Duty Classification
FEM 1Am – FEM 4m
Control System
Variable Frequency Drive (VFD) or Dual Speed
Power Supply
380V / 50Hz

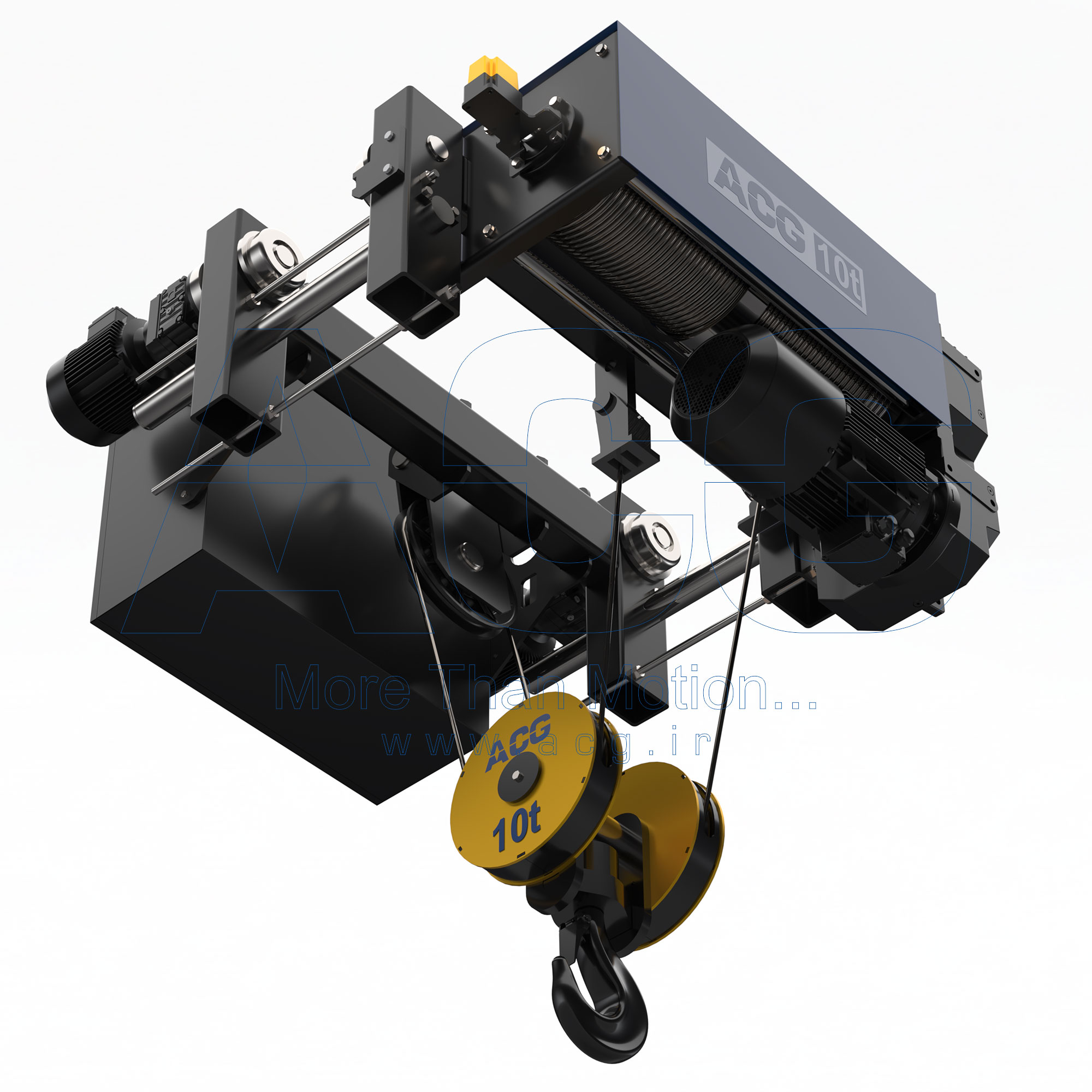

3D Exploded View
Main Hoist Components
The ACG Wire Rope Hoist is composed of mechanical, electrical and control components engineered to work together for safe, stable and reliable lifting performance.
Hoist Motor
Gearbox
Drum
Wire Rope
Hook
Hoist Motor
Gearbox
Drum
Wire Rope
Hook
Brake System
Wire Rope Guide
End Frame & Chassis
Control Panel
Limit Switch

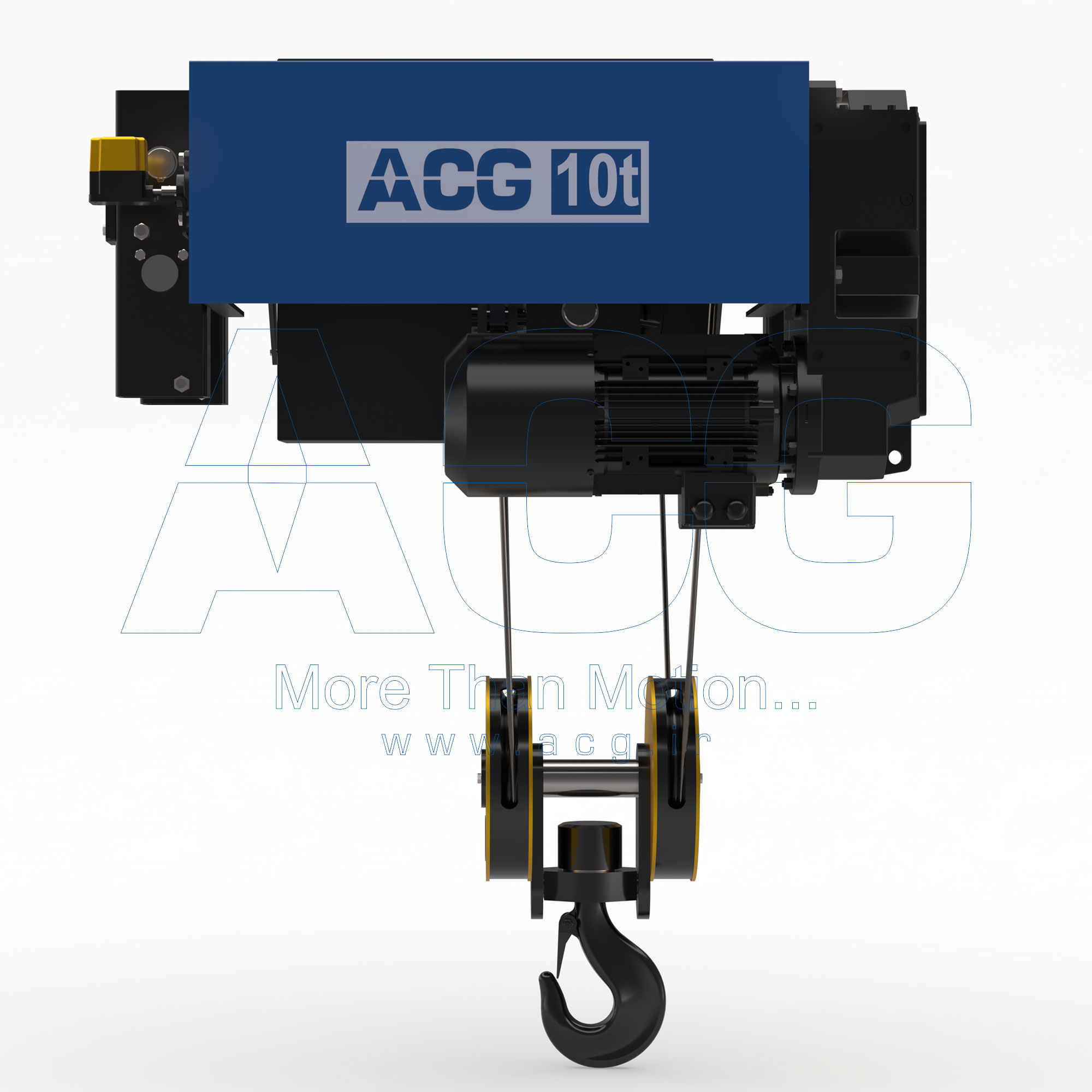

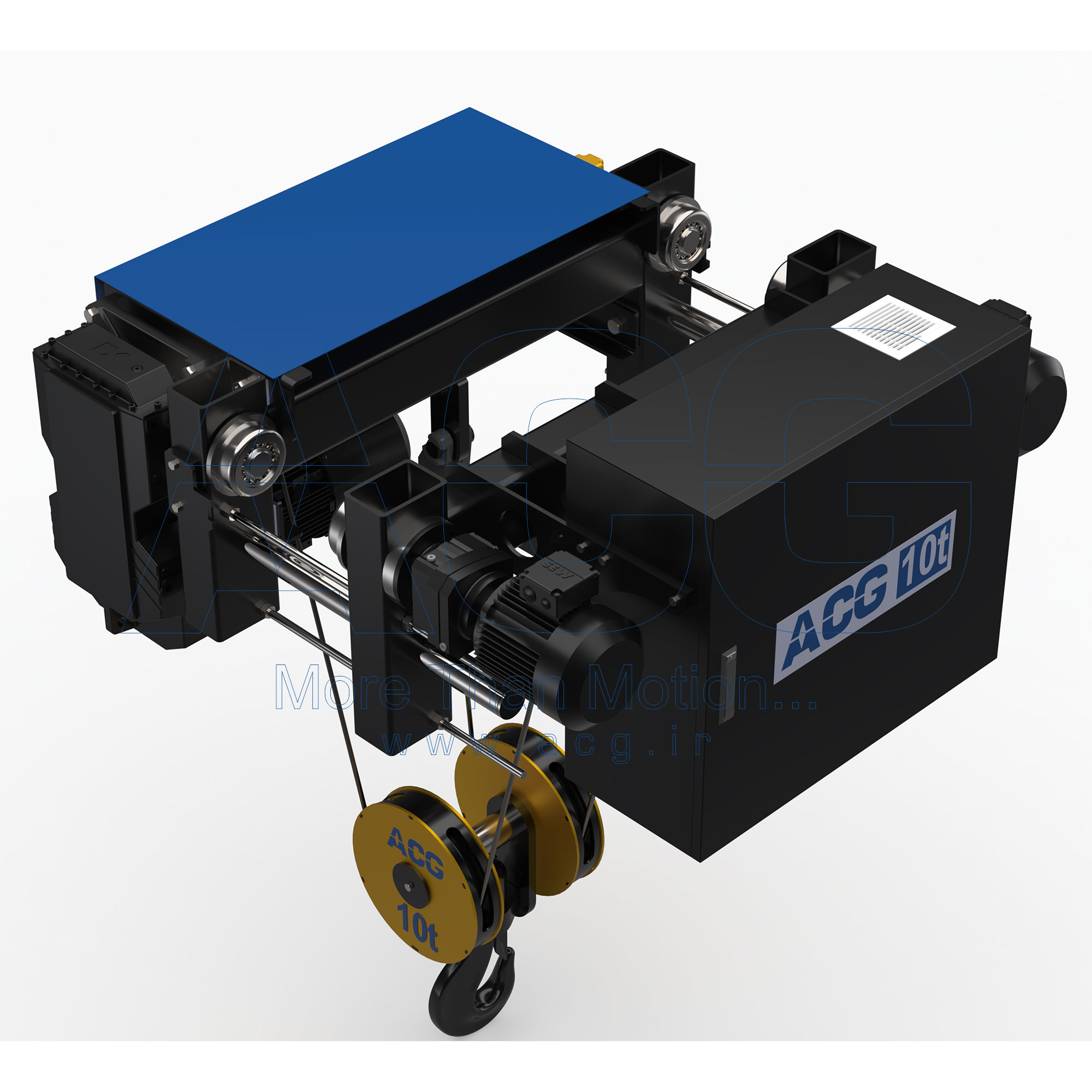

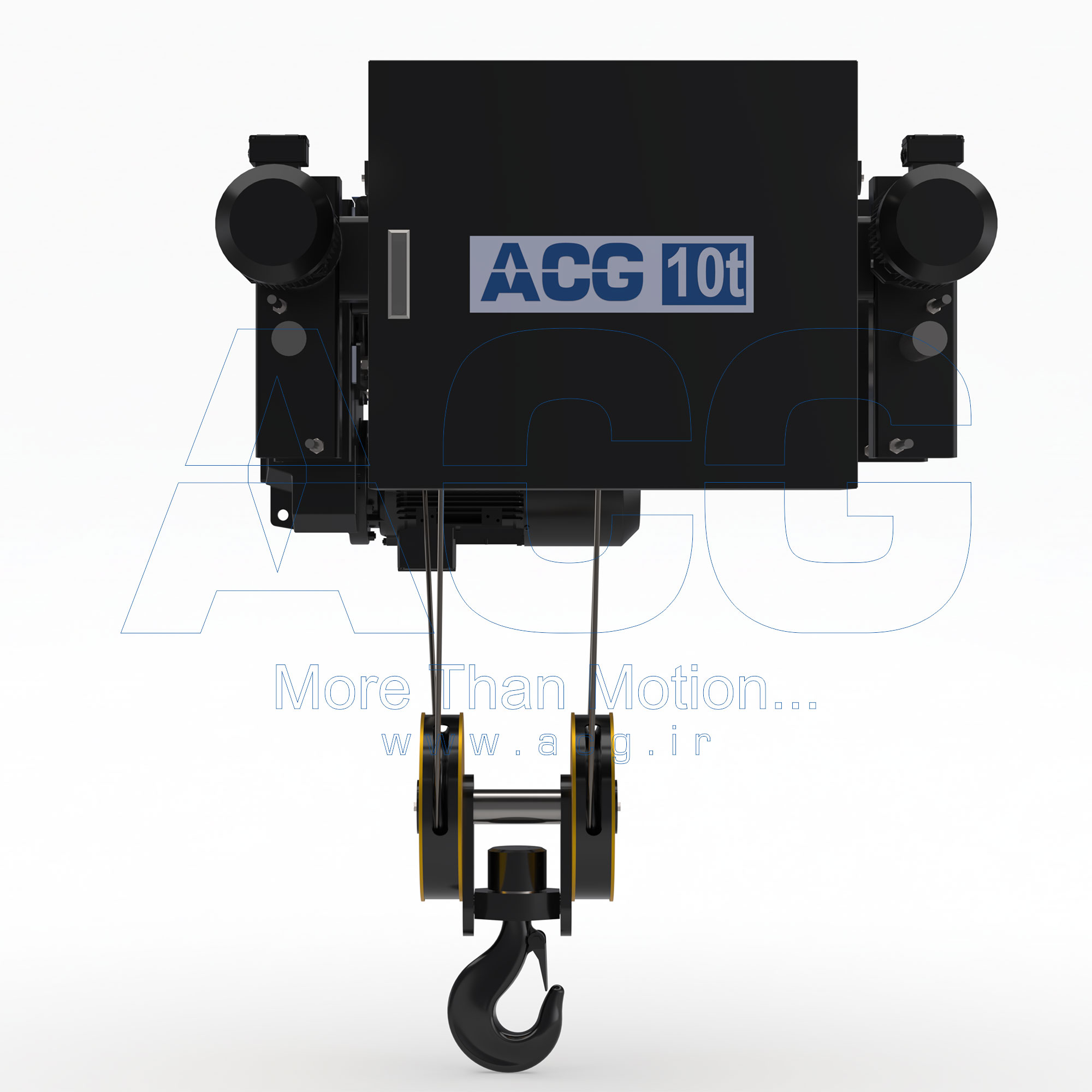

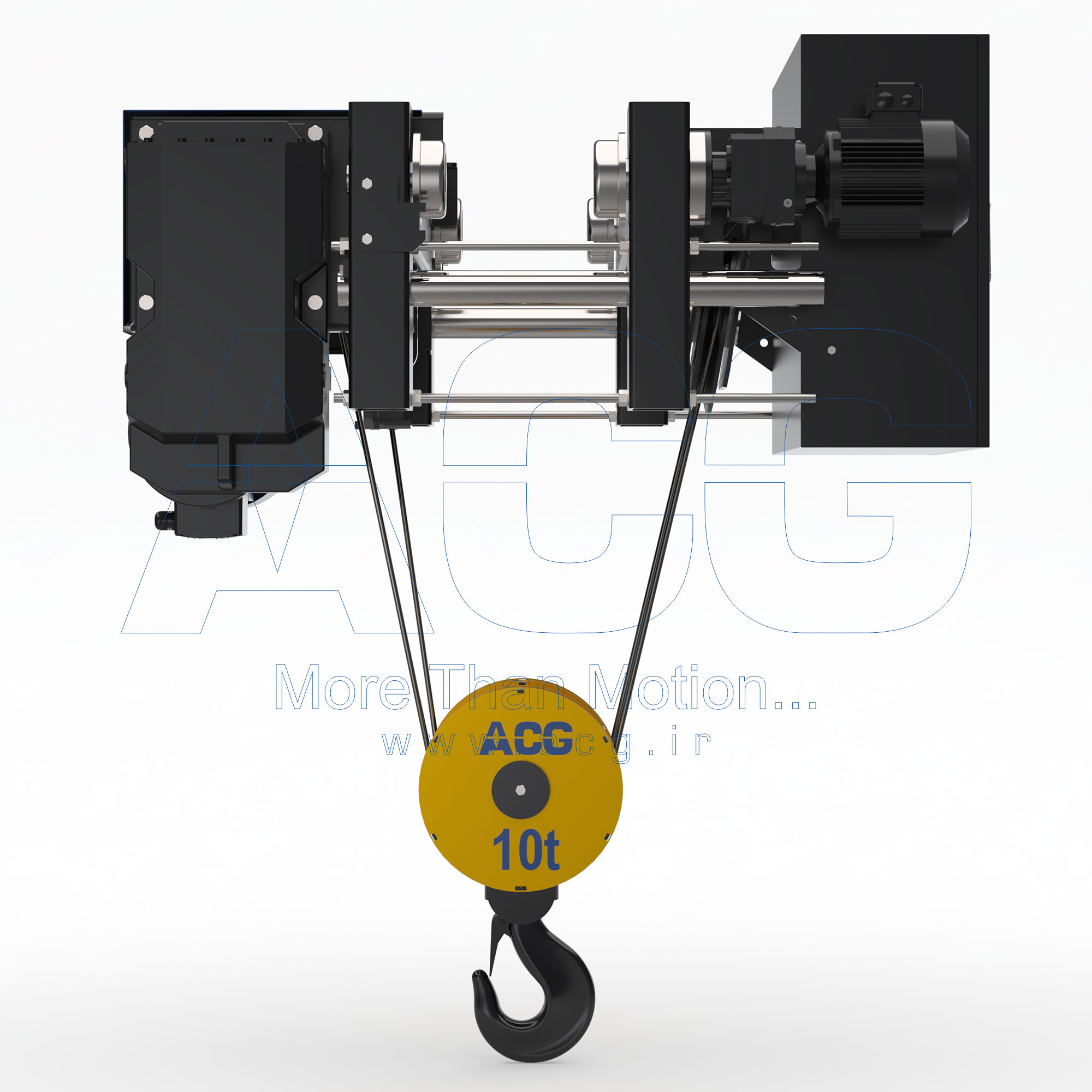

ACG RENDER GALLERY
Engineering Render Gallery

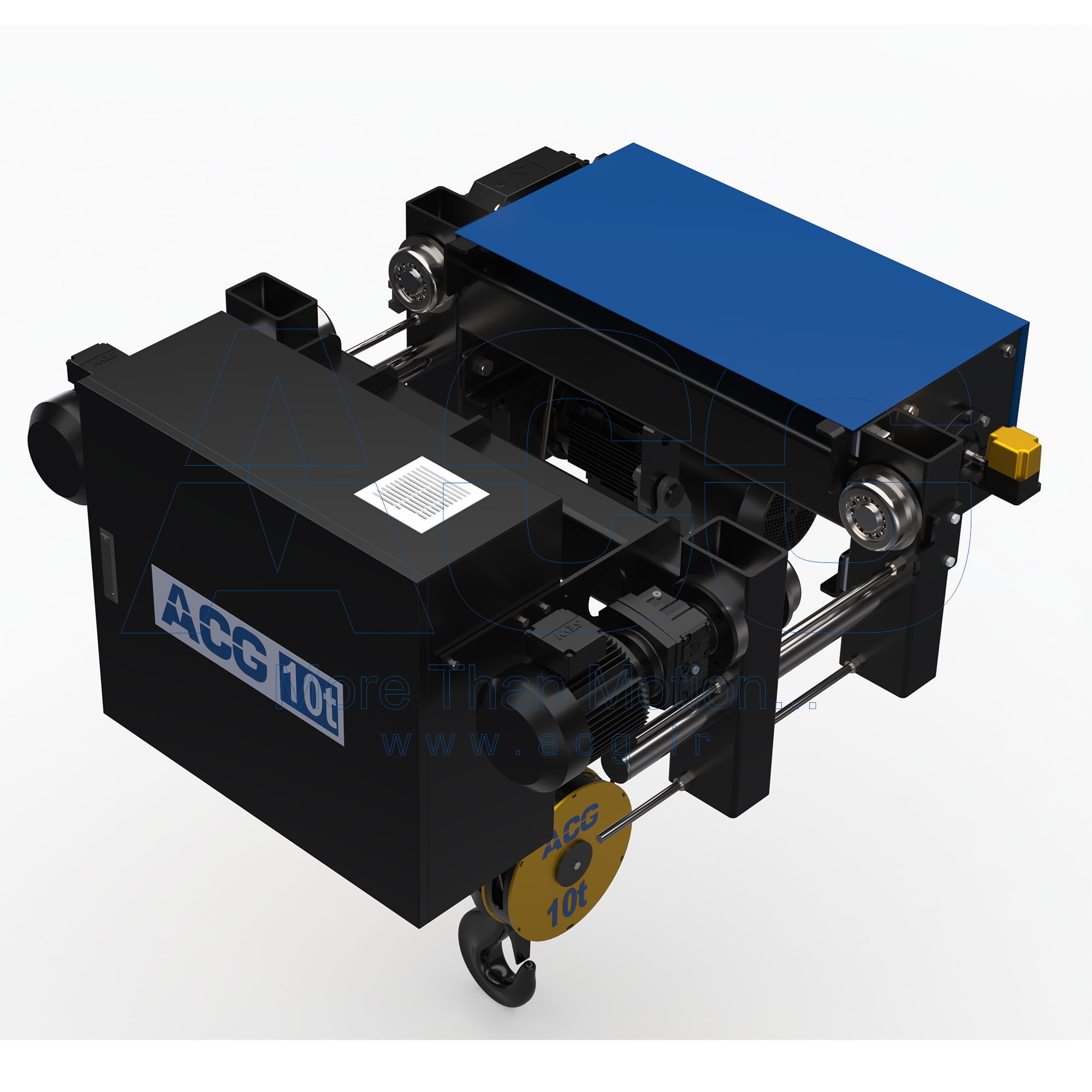

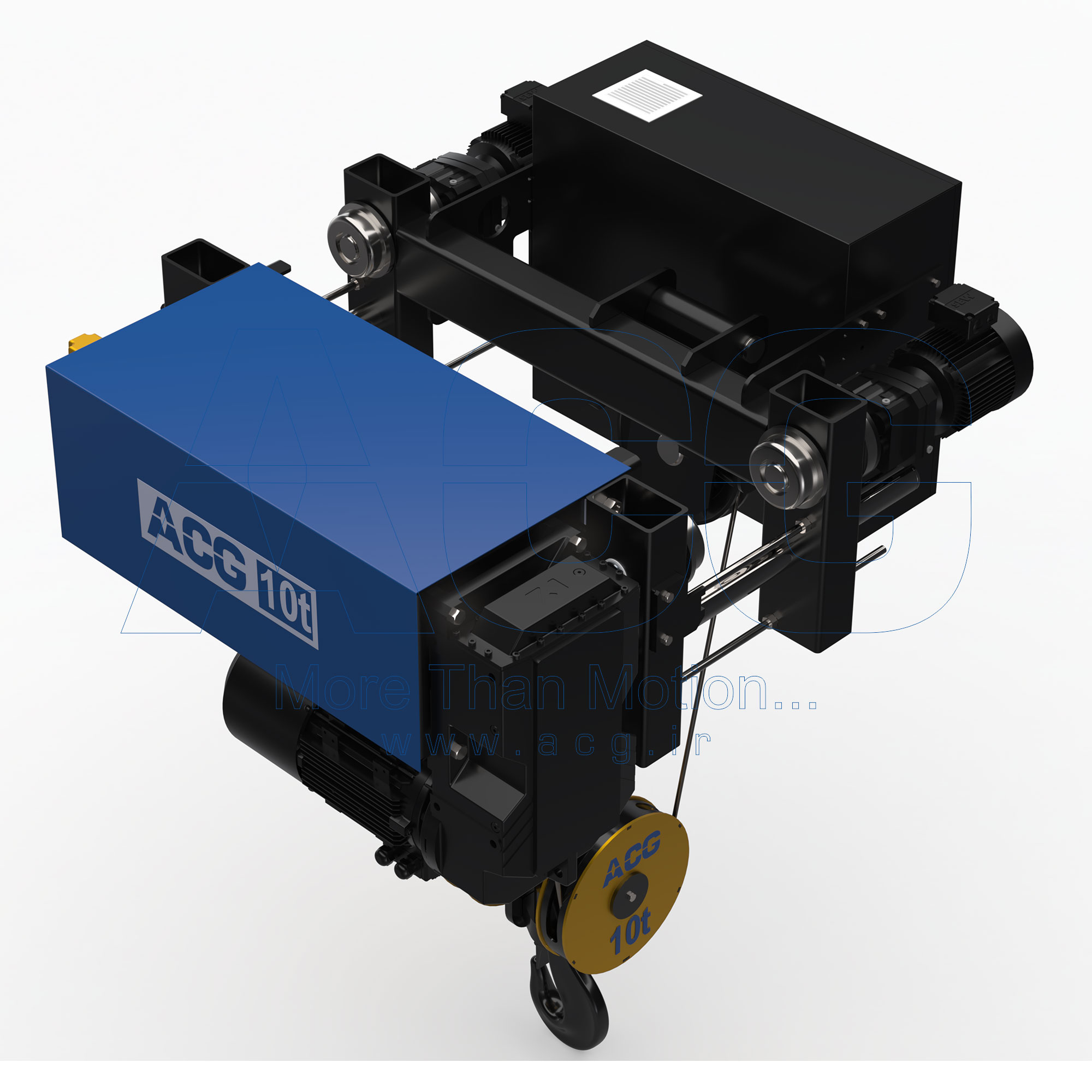

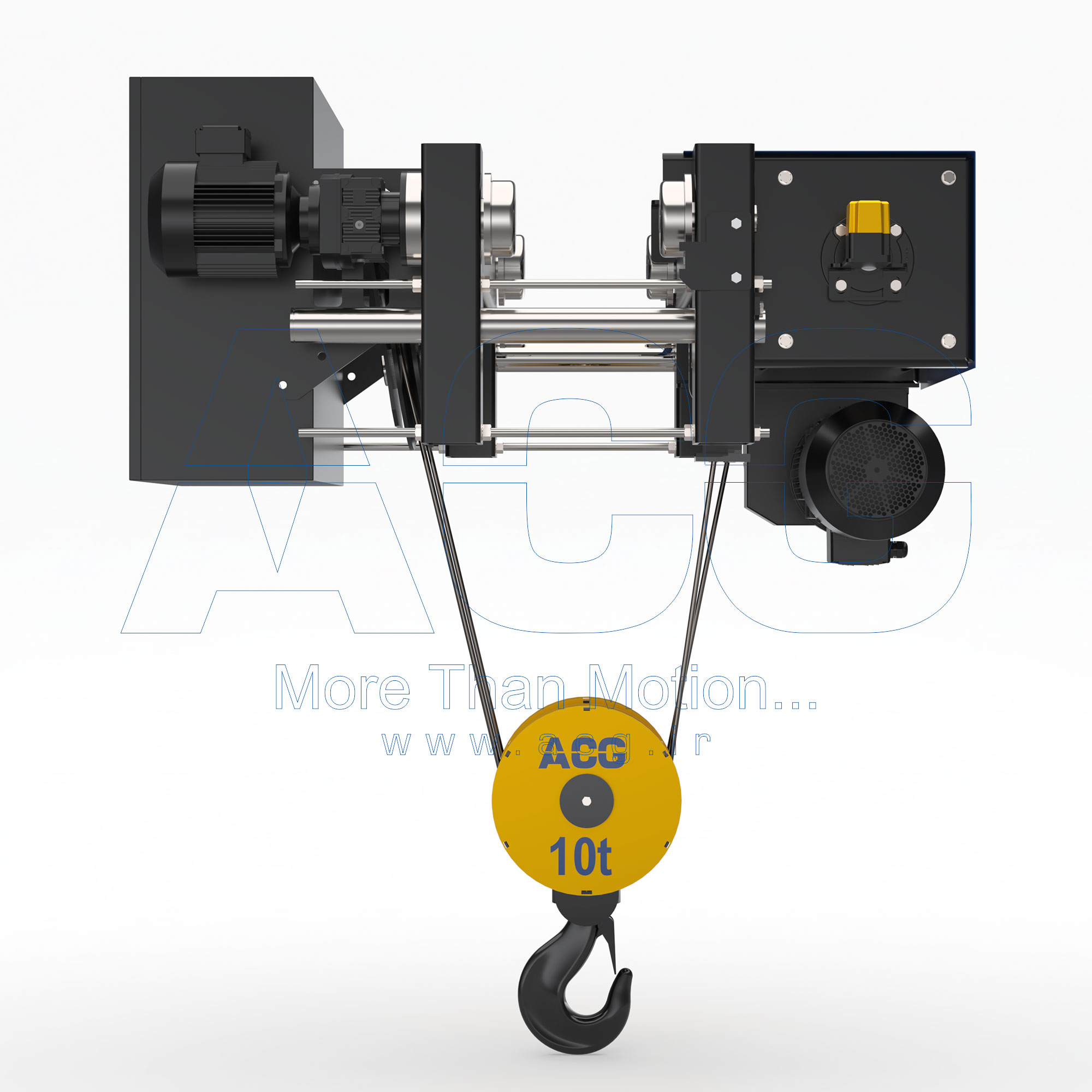

Industrial renders showing the hoist body, mechanical components, drum, hook and engineered product structure.

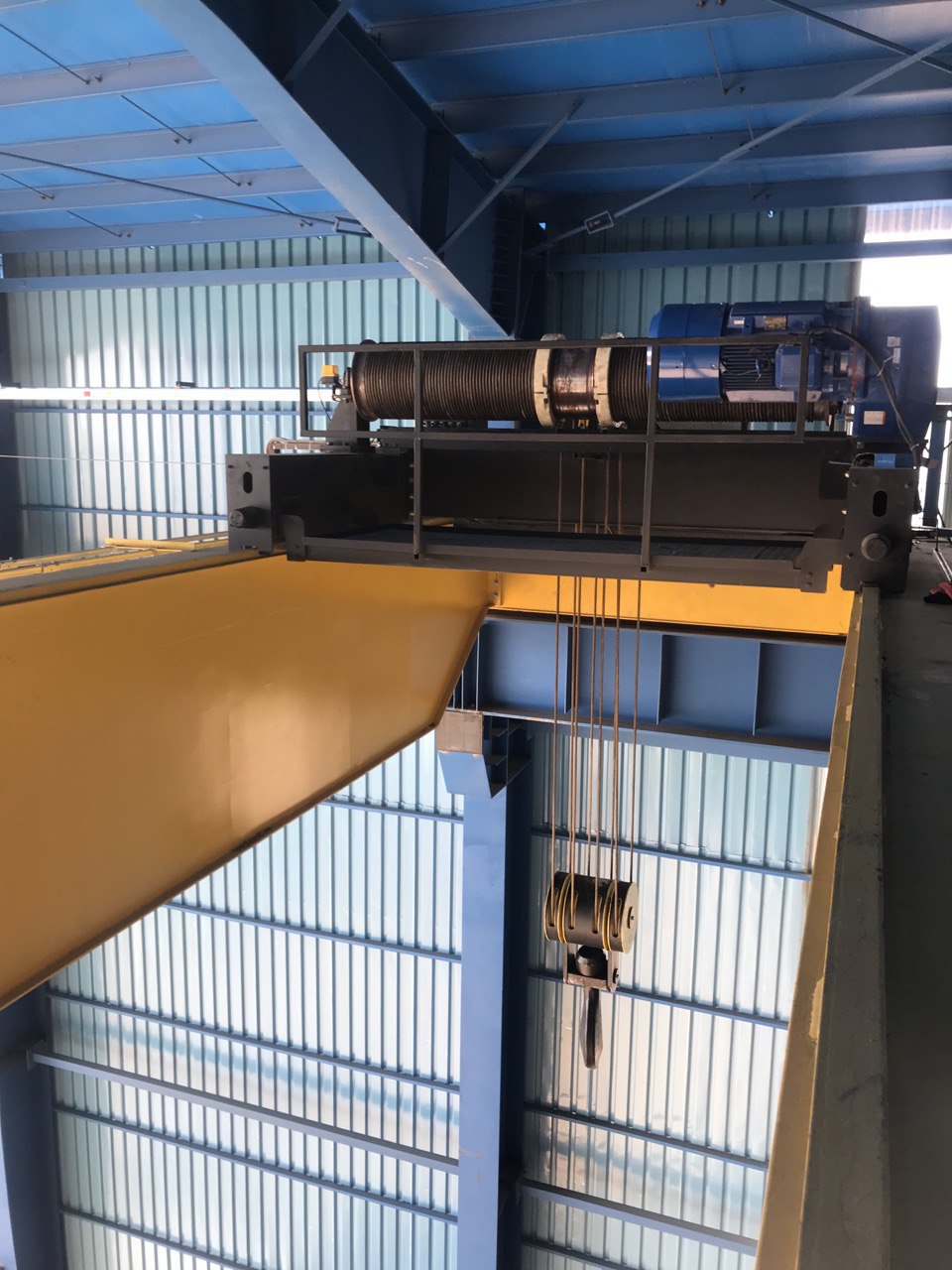

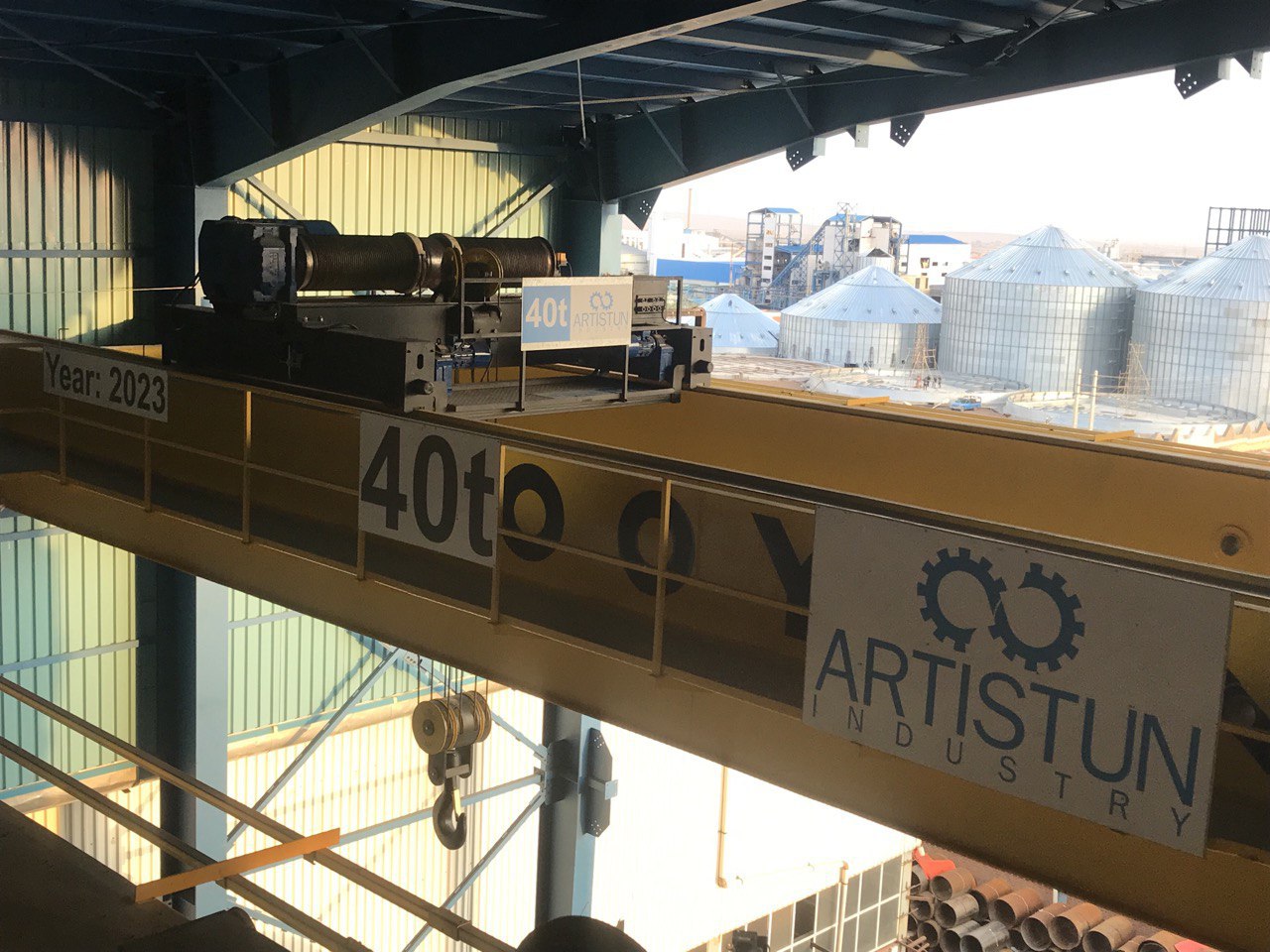

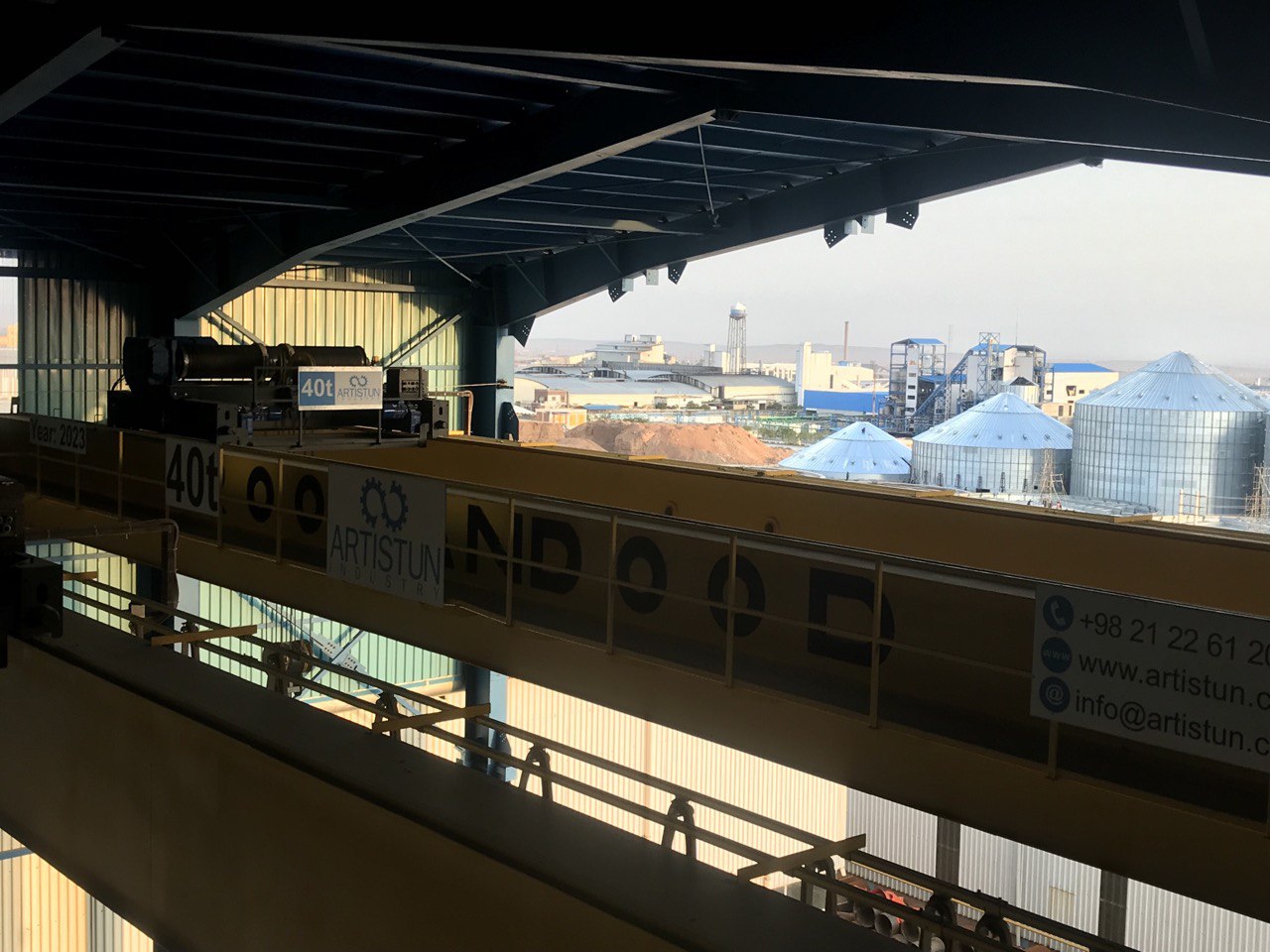

ACG PRODUCT GALLERY
Project & Product Gallery

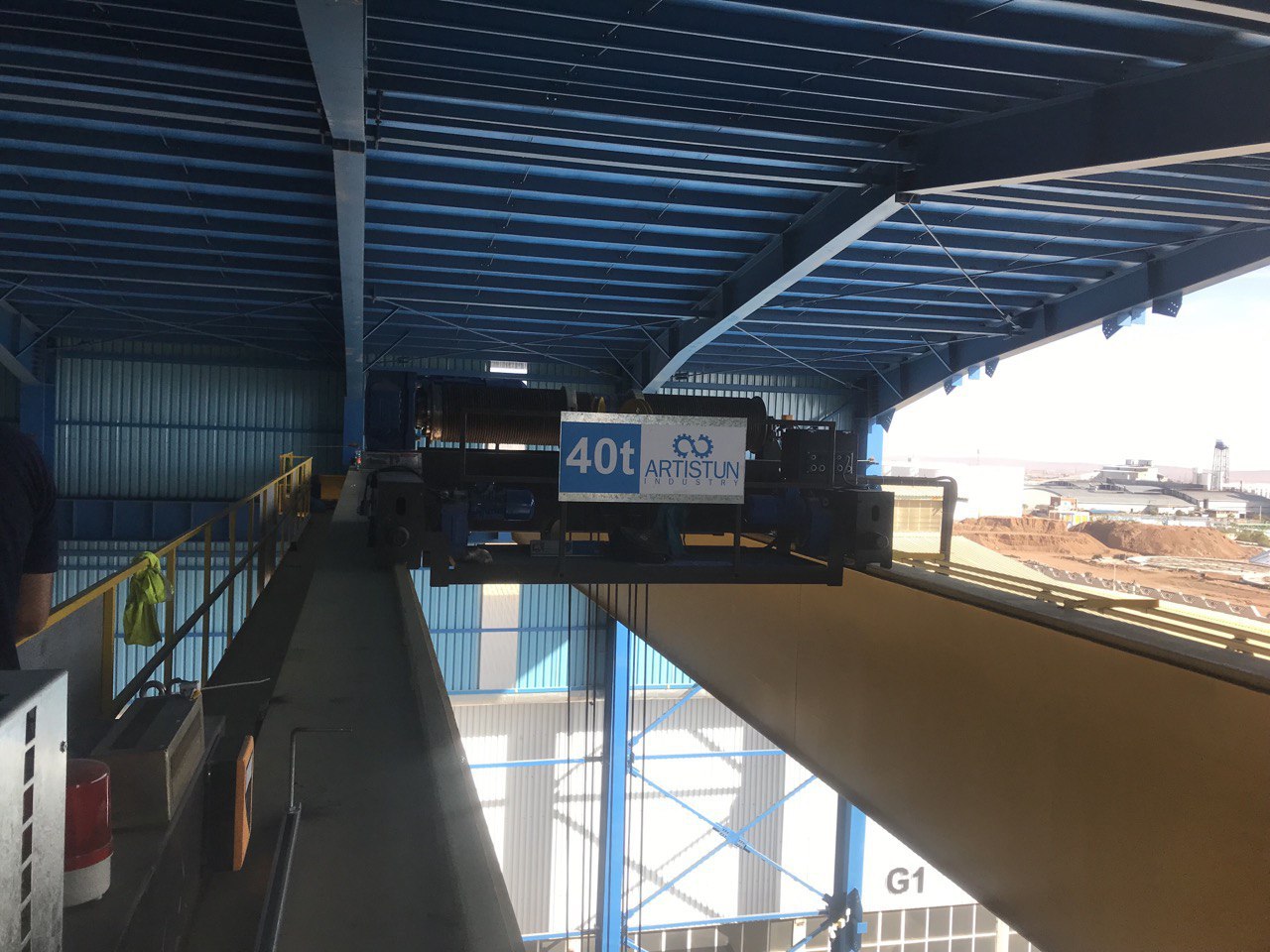

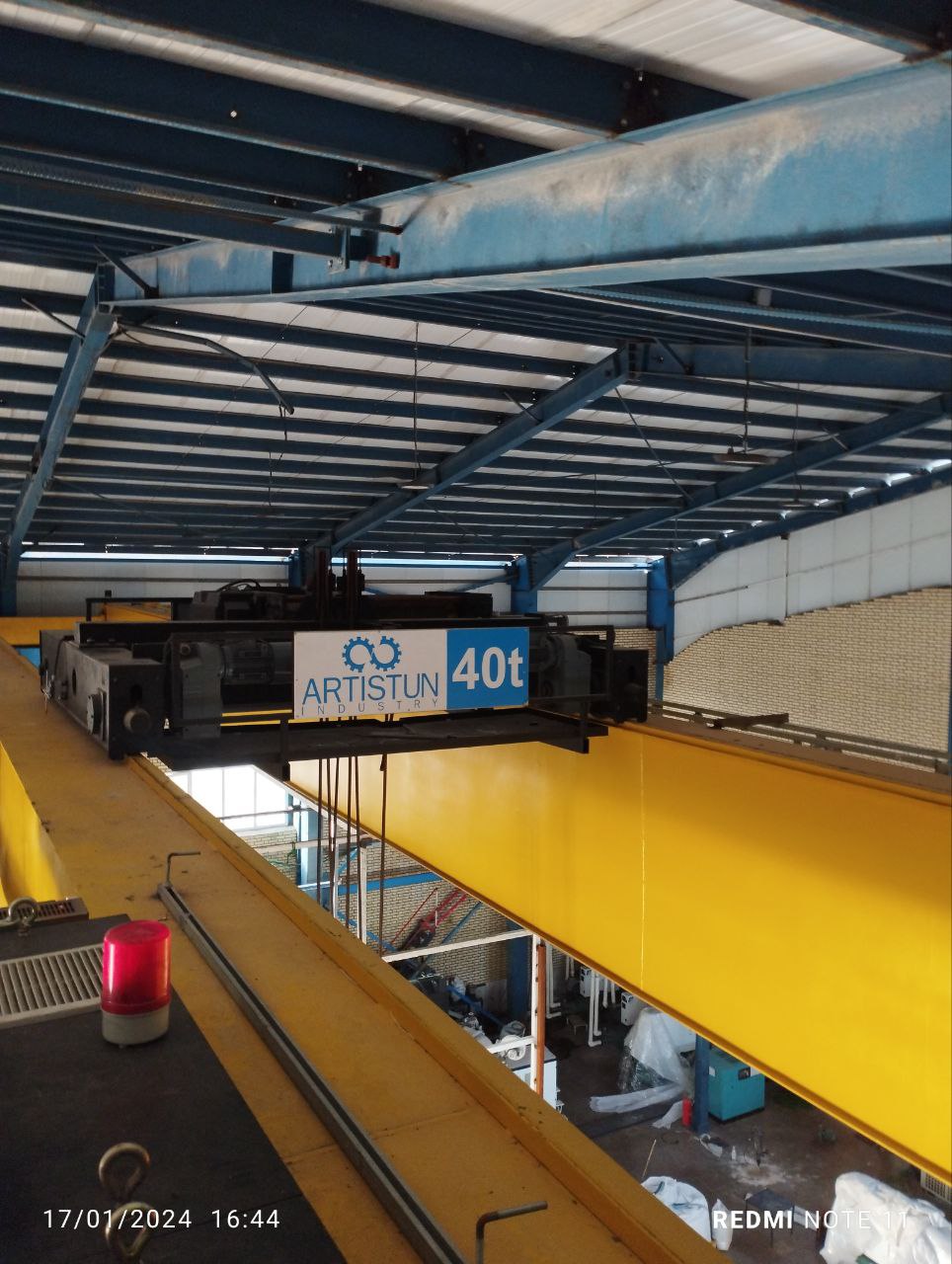

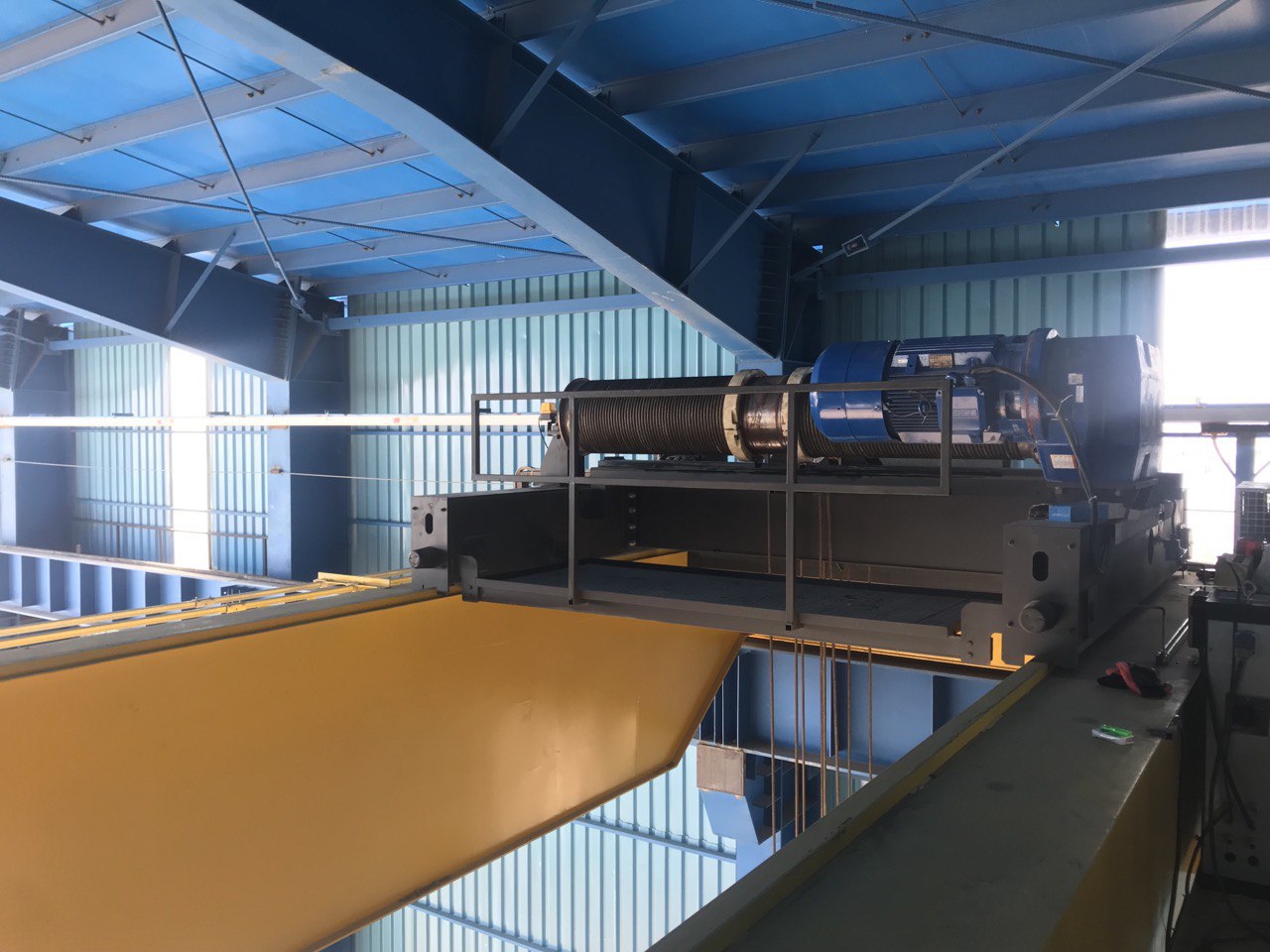

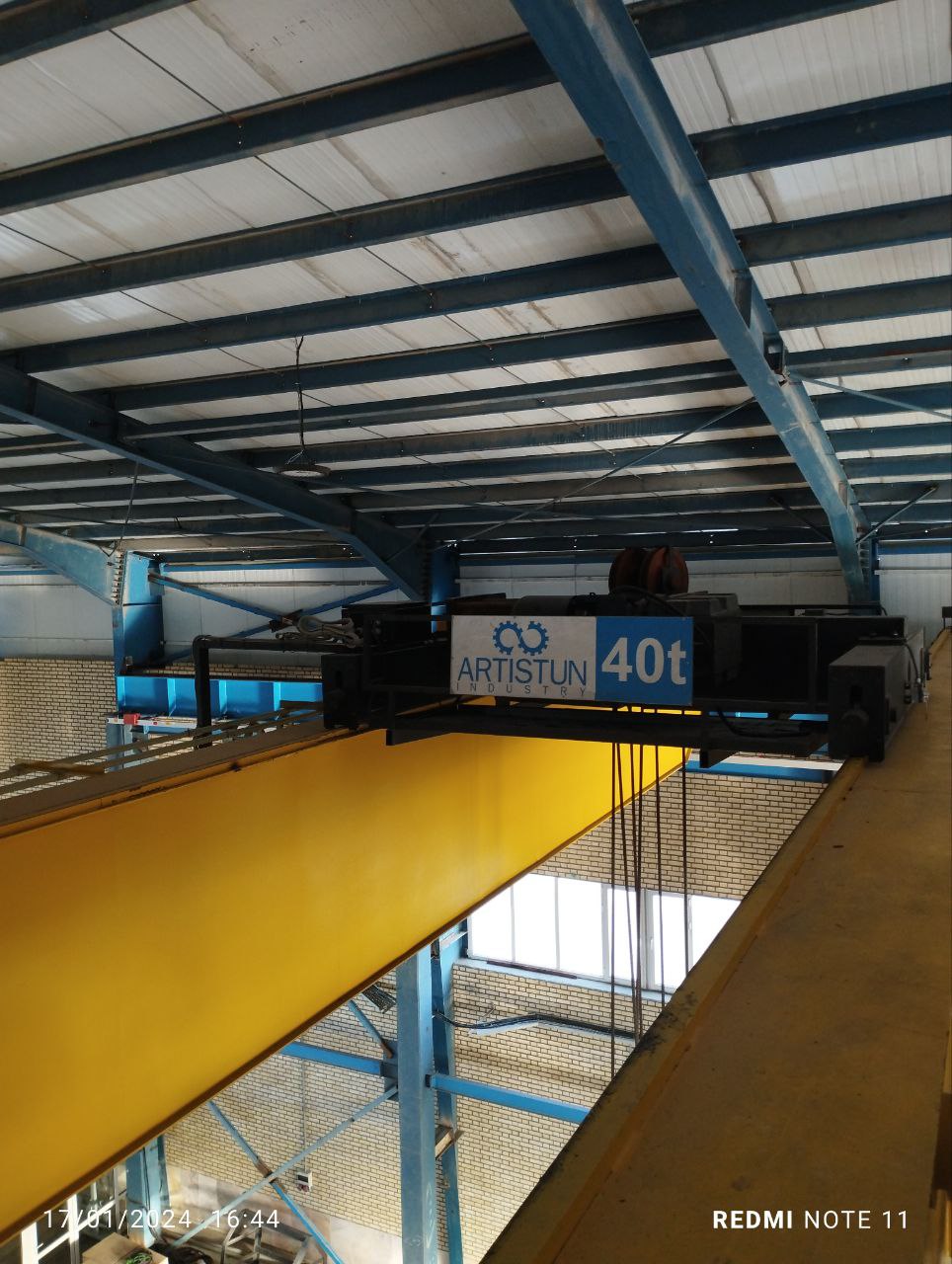

Real project images showing components, assembly details, technical features and ACG wire rope hoist applications.
Product Series
ACG Series
01
ACG POWER & POWER+
Designed for general industrial applications, workshops, production halls and projects requiring reliable and cost-effective performance.
02
ACG PRO & PRO+
Designed for production lines, continuous operation, higher duty cycles and environments where downtime is costly.
03
ACG X (Custom)
Designed for heavy industries, special projects, high capacities, demanding operating conditions and fully customized engineering.
Design & Installation Types
Types of ACG Wire Rope Hoists
ACG Wire Rope Hoists are designed and manufactured in different configurations based on capacity, movement type, installation layout and operating conditions.
Single-Reeved Hoist
Suitable for light and medium capacities with a simpler structure, easy maintenance and reliable performance.
SINGLE REEVING
Double-Reeved Hoist
Suitable for higher capacities, better load distribution and heavier industrial applications.
DOUBLE REEVING
Monorail Hoist
Suitable for suspension cranes, monorail systems and linear travel paths in industrial halls.
MONORAIL HOIST
Open Winch Type Hoist
Suitable for custom projects, heavy capacities and engineered lifting systems.
OPEN WINCH DUTY
Optional Equipment
Custom Equipment for Wire Rope Hoists
Based on operating conditions, safety requirements and control level, ACG Wire Rope Hoists can be equipped with optional accessories and advanced control systems.
ABB Inverter
Smooth motion control, reduced mechanical shock and improved start/stop accuracy.
JUUKO Radio Remote Control
Safe and precise operator control for load handling in industrial environments.
Load Weighing System
Load weight monitoring and control to improve safety and prevent overload.
Rotating Hook
Controlled load rotation for special applications and industrial assembly.
Double Hook
Suitable for special loads, long parts or applications requiring improved force distribution.
Brake Motor
Improved stopping safety, better load control and stability in heavy-duty operating conditions.
Anti-Collision System
Reduced collision risk in shared travel paths and high-traffic industrial halls.
Industrial Applications
Target Industries
ACG Wire Rope Hoists are designed for a wide range of operating conditions, from light workshops to heavy industrial plants.
Steel Industry
STEEL INDUSTRYCement Industry
CEMENT PLANTSMining Industry
MININGOil & Gas
OIL & GASPetrochemical Industry
PETROCHEMICALAutomotive Industry
AUTOMOTIVEFood Industry
FOOD INDUSTRYPower Plants
POWER PLANT
Standards & Testing
Quality & Standards
All ACG Wire Rope Hoists are designed, manufactured and tested according to international requirements.
Design & Manufacturing Standards
FEM
Duty class and mechanism classification
DIN
Industrial design and manufacturing requirements
ISO
Quality and technical compliance frameworks
EN 14492
Hoisting and winch equipment standard
IEC
Electrical and control equipment requirements
Quality Control Stages
Raw Material Inspection
Dimensional Inspection
Assembly Inspection
Load Testing
Brake Performance Test
Electrical System Check
Manufacturing & Delivery Path
ACG Production Process
ACG Wire Rope Hoist production is carried out through a controlled step-by-step process, from engineering design to load testing and final delivery.
01
Engineering Design & Calculations
ENGINEERING DESIGN02
3D Modeling
3D MODELING03
Parts Manufacturing
PARTS PRODUCTION04
Assembly
ASSEMBLY05
Quality Control
QUALITY CONTROL06
Load Testing
LOAD TEST07
Delivery
DELIVERY
Wire Rope Hoist Capacity Range
ACG Standard Capacities
Common ACG wire rope hoist capacities for faster and more accurate industrial project selection.
1 Tons
WIRE ROPE HOIST
2 Tons
WIRE ROPE HOIST
3.2 Tons
WIRE ROPE HOIST
5 Tons
WIRE ROPE HOIST
6.3 Tons
WIRE ROPE HOIST
10 Tons
WIRE ROPE HOIST
16 Tons
WIRE ROPE HOIST
20 Tons
WIRE ROPE HOIST
32 Tons
WIRE ROPE HOIST
40 Tons
WIRE ROPE HOIST
50 Tons
WIRE ROPE HOIST
FAQ
Frequently Asked Questions
From 1 ton to 100 tons, with higher capacities available as customized solutions.
Yes. The hoist can be equipped with an inverter for smooth motion control and reduced mechanical shock.
Yes. Lifting height can be customized based on project conditions, hall layout, crane type and operating requirements.
Yes. Spare and consumable parts can be supplied for periodic service and maintenance.
Yes. After technical inspection of the existing crane, installation or replacement can be evaluated.
Request a Quote
Enter your required capacity, lifting height, duty class and crane type so ACG experts can review your project accurately.
Beyond Motion...
An Engineered Choice for Reliable Load Handling
Contact ACG experts for technical consultation and a wire rope hoist quotation.
